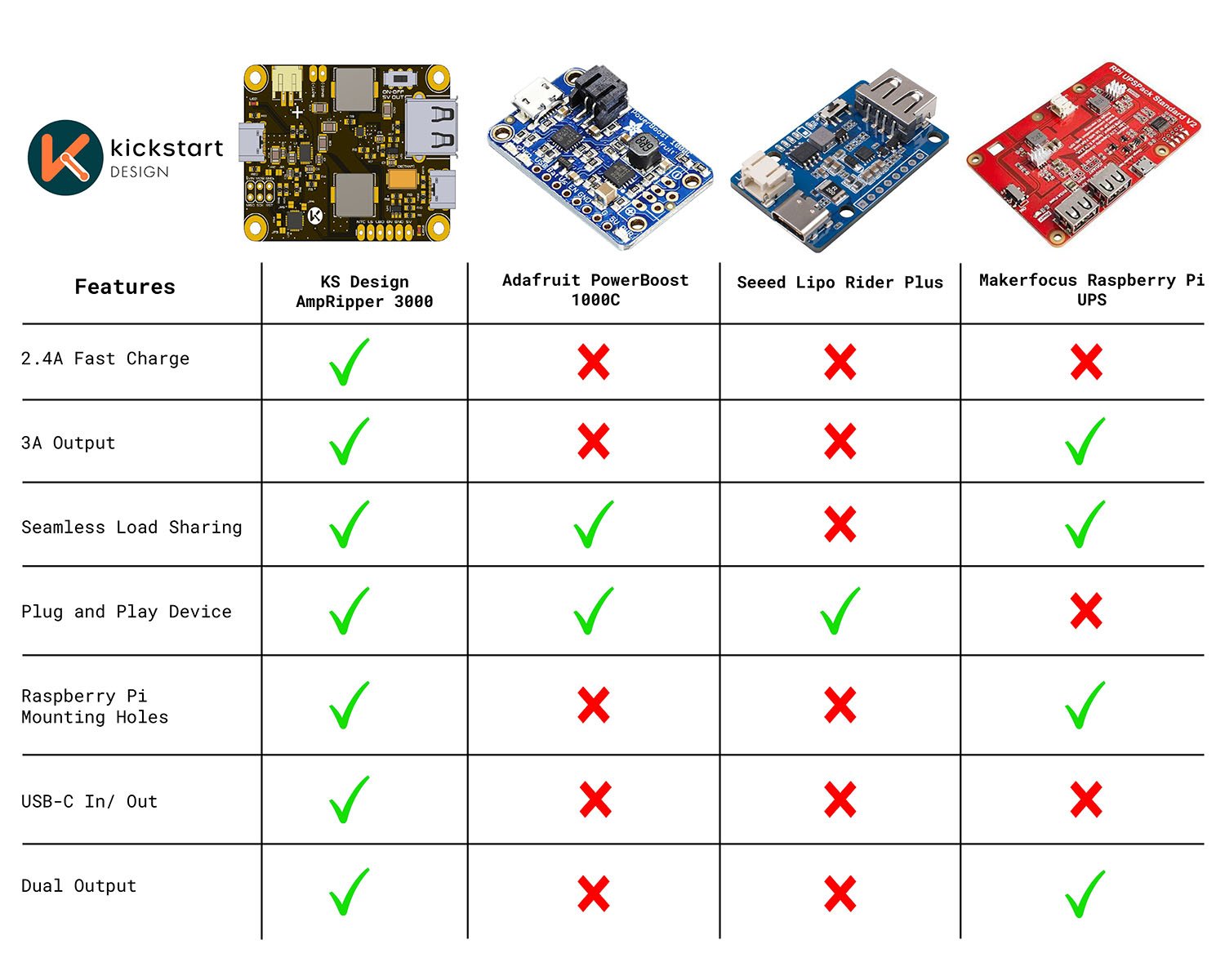

AmpRipper 3000, powerboost 1000c Comparison Chart powerboost 1000c alternative
AmpRipper 3000 Plug and Play Li-ion Charging Board With Scale
AmpRipper 3000 USB C 2.4A Fast Charging Lipo Module ISO View

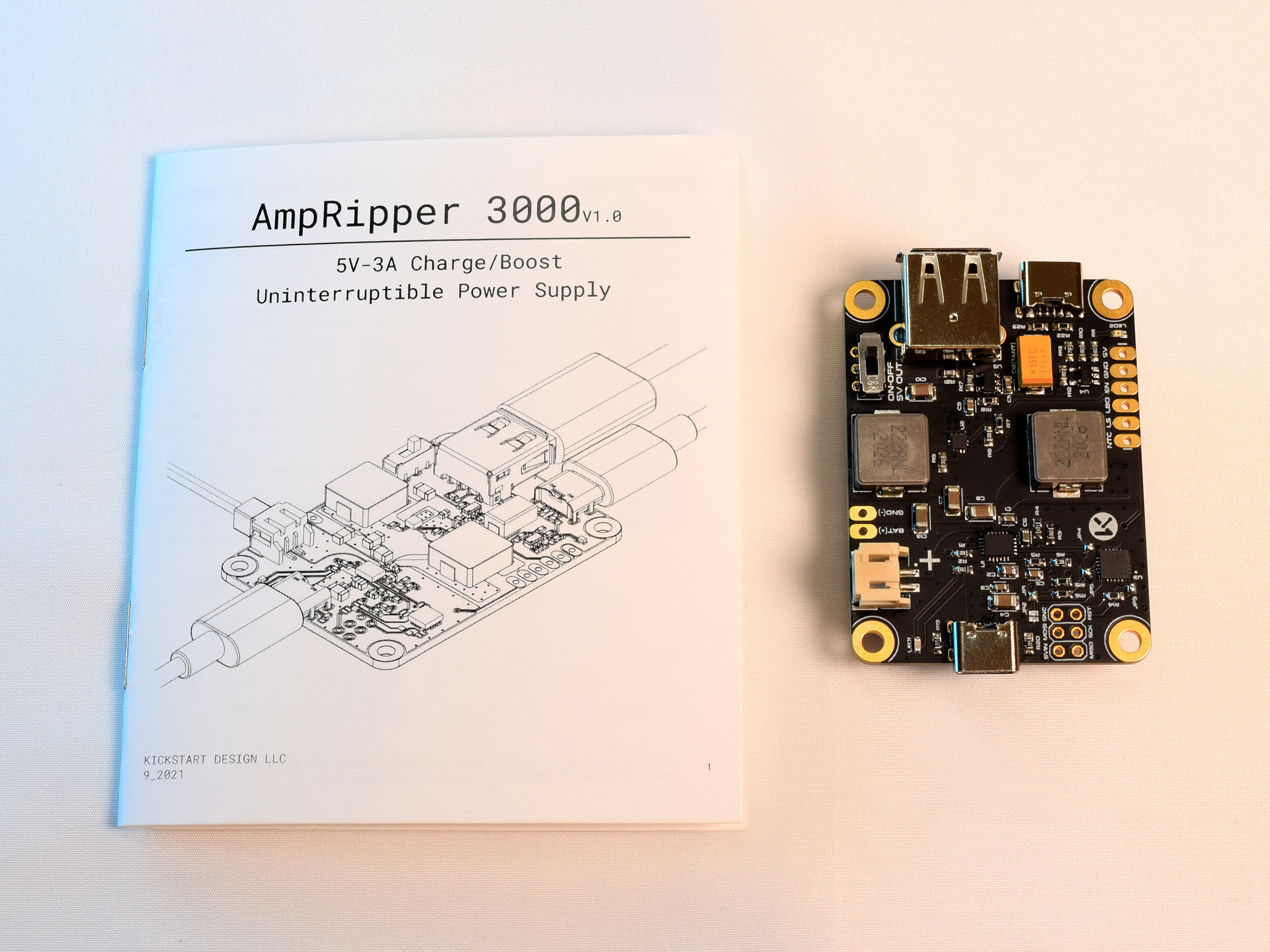

AmpRipper 3000 3A Output USB Boost With Manual, Rasberry Pi 4 Battery Module

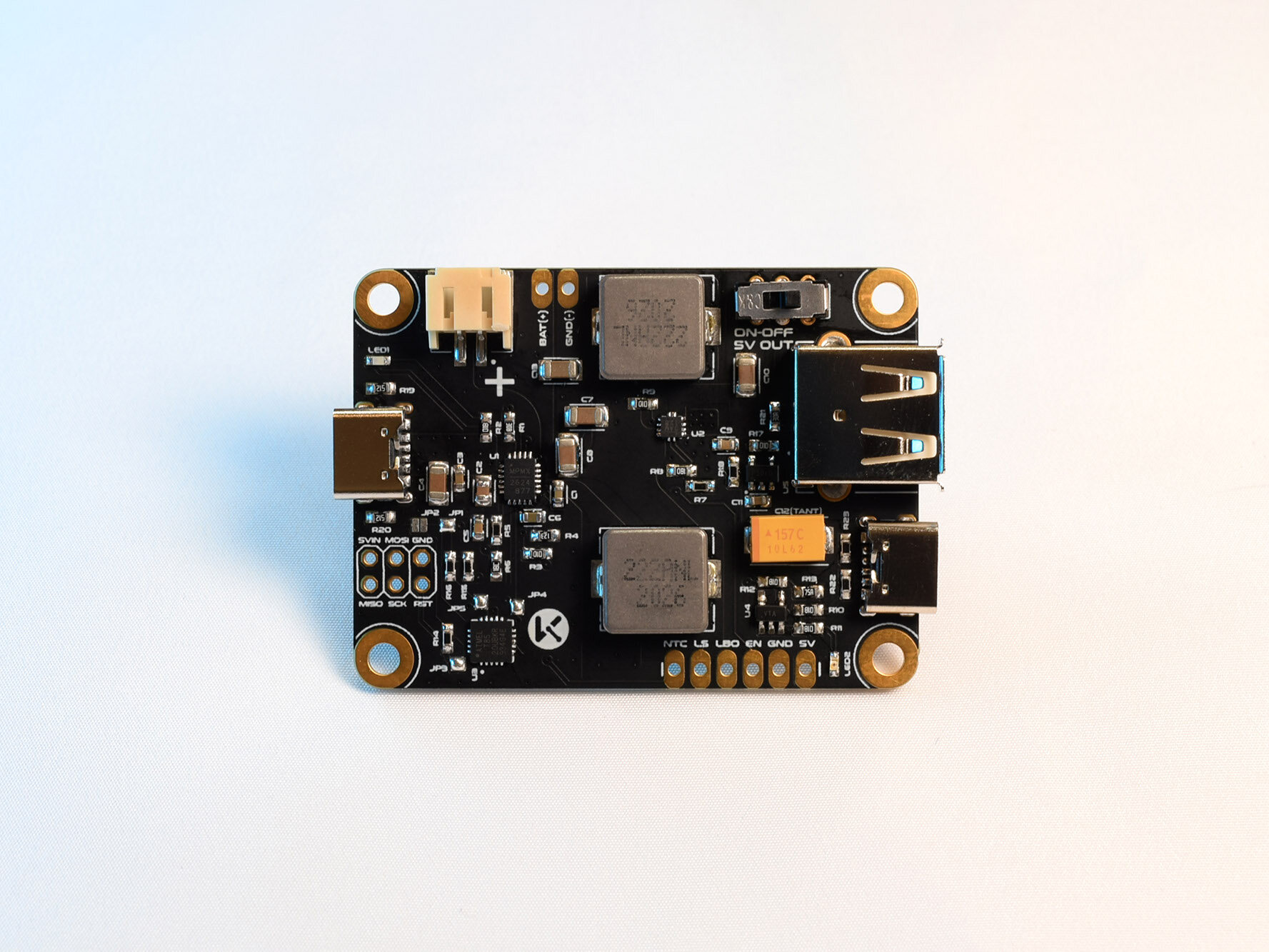

AmpRipper 3000 Rechargeable 5V USB Boost Top
AmpRipper 3000 Rechargeable 5V USB Boost, PowerBoost 1000 Alternative
AmpRipper 3000 Portable Project Load-sharing Battery Charger Circuit ISO View
AmpRipper 3000, powerboost 1000c Comparison Chart powerboost 1000c alternative
AmpRipper 3000 Plug and Play Li-ion Charging Board With Scale
AmpRipper 3000 USB C 2.4A Fast Charging Lipo Module ISO View
AmpRipper 3000 3A Output USB Boost With Manual, Rasberry Pi 4 Battery Module
AmpRipper 3000 Rechargeable 5V USB Boost Top
AmpRipper 3000 Rechargeable 5V USB Boost, PowerBoost 1000 Alternative

AmpRipper 3000 v1.0

$24.99
Sold Out

5V-3A Lipo | Li-ion battery charger & boost module featuring fast charge technology and plug’n’play compatibility with Raspberry Pi & Arduino products. The perfect Raspberry Pi 4 battery power supply. A more powerful, more accessible alternative to other single cell battery charge/boost modules.

The AmpRipper 3000 is a next-gen power supply for all your portable/rechargeable projects! With Narrow VDC PowerPath Management and a 3A peak output current, you’ll be able to power your high-current projects and fast charge your battery with a single module. It's a true plug and play battery charger module, compatible with Arduino, Raspberry Pi, teensy, or any other 5V device. The AmpRipper can operate with most 3.7-4.2V lithium-ion or polymer batteries, but to get the most out of this product please use batteries with ≥3000mAh capacity and high discharge capacity (≥2C).

Order Now

5V-3A Lipo | Li-ion battery charger & boost module featuring fast charge technology and plug’n’play compatibility with Raspberry Pi & Arduino products. The perfect Raspberry Pi 4 battery power supply. A more powerful, more accessible alternative to other single cell battery charge/boost modules.

The AmpRipper 3000 is a next-gen power supply for all your portable/rechargeable projects! With Narrow VDC PowerPath Management and a 3A peak output current, you’ll be able to power your high-current projects and fast charge your battery with a single module. It's a true plug and play battery charger module, compatible with Arduino, Raspberry Pi, teensy, or any other 5V device. The AmpRipper can operate with most 3.7-4.2V lithium-ion or polymer batteries, but to get the most out of this product please use batteries with ≥3000mAh capacity and high discharge capacity (≥2C).

5V-3A Lipo | Li-ion battery charger & boost module featuring fast charge technology and plug’n’play compatibility with Raspberry Pi & Arduino products. The perfect Raspberry Pi 4 battery power supply. A more powerful, more accessible alternative to other single cell battery charge/boost modules.

The AmpRipper 3000 is a next-gen power supply for all your portable/rechargeable projects! With Narrow VDC PowerPath Management and a 3A peak output current, you’ll be able to power your high-current projects and fast charge your battery with a single module. It's a true plug and play battery charger module, compatible with Arduino, Raspberry Pi, teensy, or any other 5V device. The AmpRipper can operate with most 3.7-4.2V lithium-ion or polymer batteries, but to get the most out of this product please use batteries with ≥3000mAh capacity and high discharge capacity (≥2C).



FEATURES:

  • Up to 2.4A fast-charge

  • 5V-3A DC (continuous with airflow) | 5V-2A DC (continuous)

  • Seamless Load Sharing

  • Plug and Play Device

  • Raspberry Pi Compatible Mounting Holes

  • USB-C In/ Out

  • Dual Output

WHAT’S INCLUDED:

  • 1x Fully Populated AmpRipper 3000 v1.0

TECHNICAL SPECIFICATIONS:

  • Input Power: 5-5.5V/3A DC via USB-C connector (max. 3A)

  • Output Power: 5.25V/3A DC via USB-C, USB-A, and 5V out pin (max. total 3A)

  • Charge Voltage: 4.2V

  • Low Battery Voltage Range: 3.0-3.3V

    • Charge & boost functions are suspended if the battery voltage drops below 3.0V

  • Battery Voltage Protection: 3.0V

  • Battery Auto-Recharge Threshold: 4.0V

  • Constant Current Charge Timer: 8 hrs.

    • Charge will be suspended if battery voltage does not reach 4.2V within 8 hrs.

  • Battery Requirements:

    • 3.7-4.2V lithium-ion/polymer only

    • Single-cell or 1S[N]P series-parallel battery packs with external voltage balancing circuitry

    • ≥3000mAh with high discharge capacity (≥2C)

    • JST PH-2.0 Connector. Some third-party batteries have JST connectors wired opposite from the standard. Connecting these to the AmpRipper will damage your product. Always check the polarity before connecting.

  • Battery operating temperature: 0-60°C (10k thermistor connected)

  • PCB operating temperature: 0–120°C

  • Dimensions: 55mm x 35mm x 10mm / 2.17” x 1.38” x 0.39”

  • Weight: 17g / 0.6 oz.

ADDITIONAL RESOURCES:

At the core of the AmpRipper is the MP2624 switching-mode battery charger and the MP3423 synchronous boost converter. The MP2624 employs a constant current/constant voltage charge profile, with a fast-charge rate of up to 2.4A. The MP2624’s load-sharing architecture allows for seamless transitions between charge and discharge modes. Power to your project will not be interrupted, even if the battery is disconnected!

The MP3423 synchronous boost converter has 90%+ efficiency at 5V output (up to 3A). This means you won’t get any nasty voltage dips at high current outputs. Just make sure your battery can handle it! Synchronous operation means you can disconnect the 5V output completely by connecting the (EN)able pin to ground.

The USB-C input is configured as a UFP (upstream facing port) for 5V power input only. The USB-C output is a DFP (downstream facing port) and the USB-A output is a DCP (dedicated charging port), both regulated at 5.25V. This configuration works with most 5V USB-A/C 2.0 and 3.0 devices but may not work with some proprietary devices. Short, thick, & high-quality cables are recommended for high current applications. Both USB-A/C outputs can be connected at the same time, but keep in mind that the total output power is divided. Due to the nature of the design, the input current will always be greater than the output current (up to 2X greater). Therefore, it is essential to use high-quality batteries with max discharge values ≥2X the desired output. Likewise, the pass-through current may be limited to ≤2A with a 3A input. When using as an uninterruptible power supply, keep in mind that output loads >2A will deplete the battery over time. PCB will get hot (up to 120°C) during high-current applications. Allow space between PCB and other components and use a cooling system!

There are 2 LEDs: one for indicating charge status and one for low battery. The charge LED will glow solid orange when charging and will turn off once charging is complete. Power will continue to flow after the charge is complete, so it is normal for the LEDs to turn off during operation. The charge cycle will restart automatically if the battery drops below 4.0V. The charge LED will blink rapidly if the charge is suspended (caused by thermal protection, over-voltage protection, or insufficient input current). The low battery indicator will glow bright red when the battery voltage drops below 3.3V. The system has an absolute minimum battery voltage of 3.0V. Once the battery dips below 3.0V, all operation will be suspended.
