Standalone AmpRipper 4000 v1.0 Heatsink & Fan

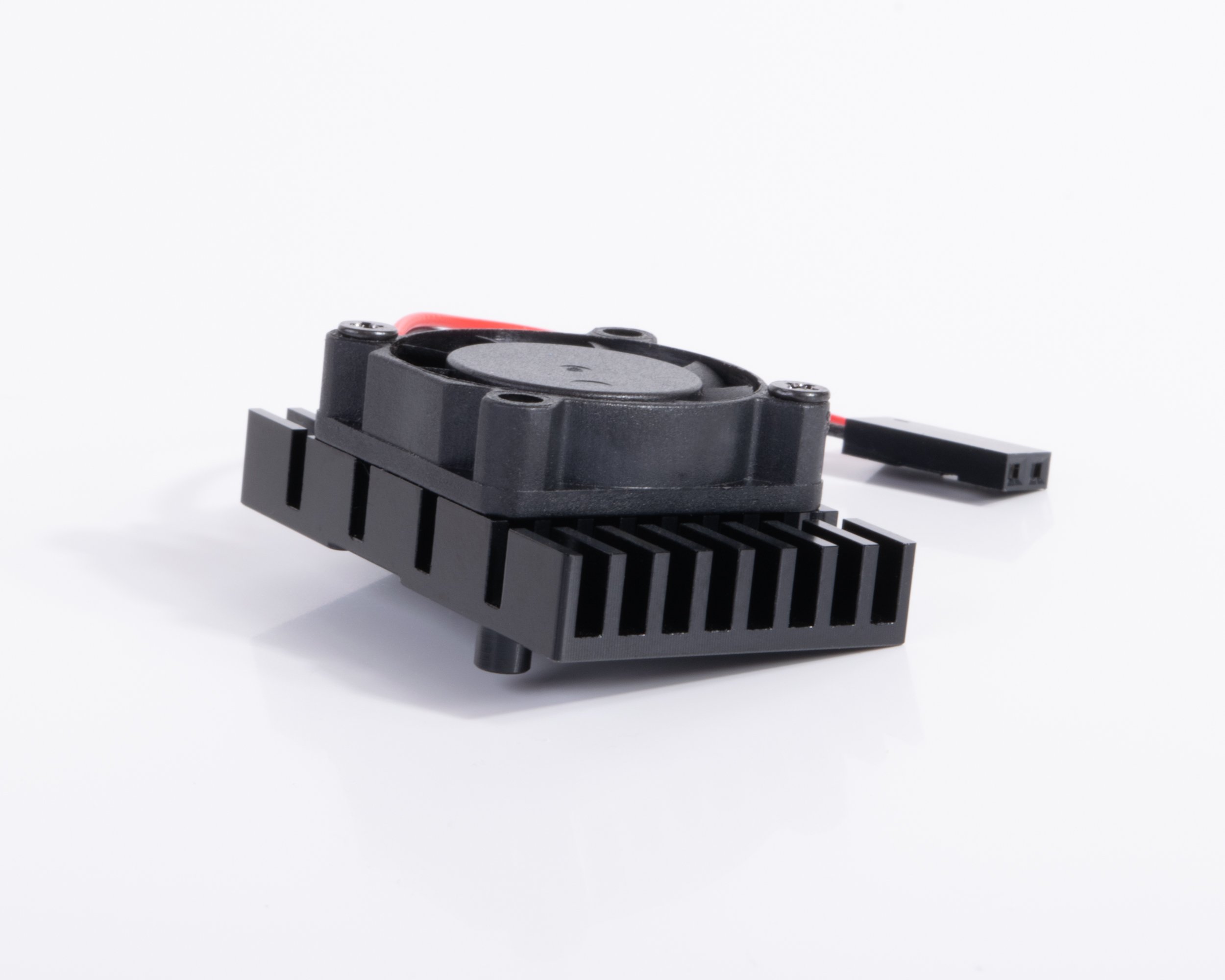

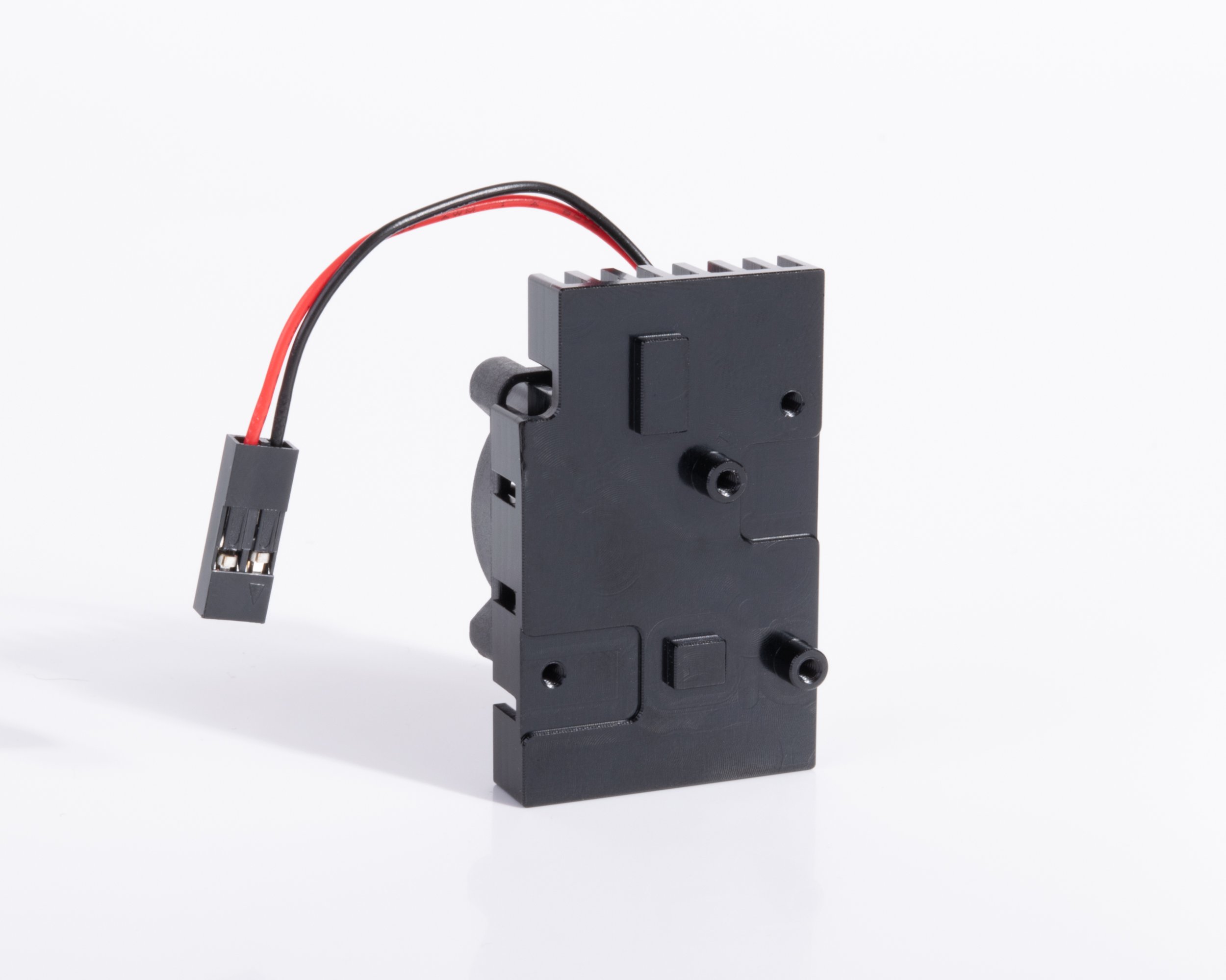

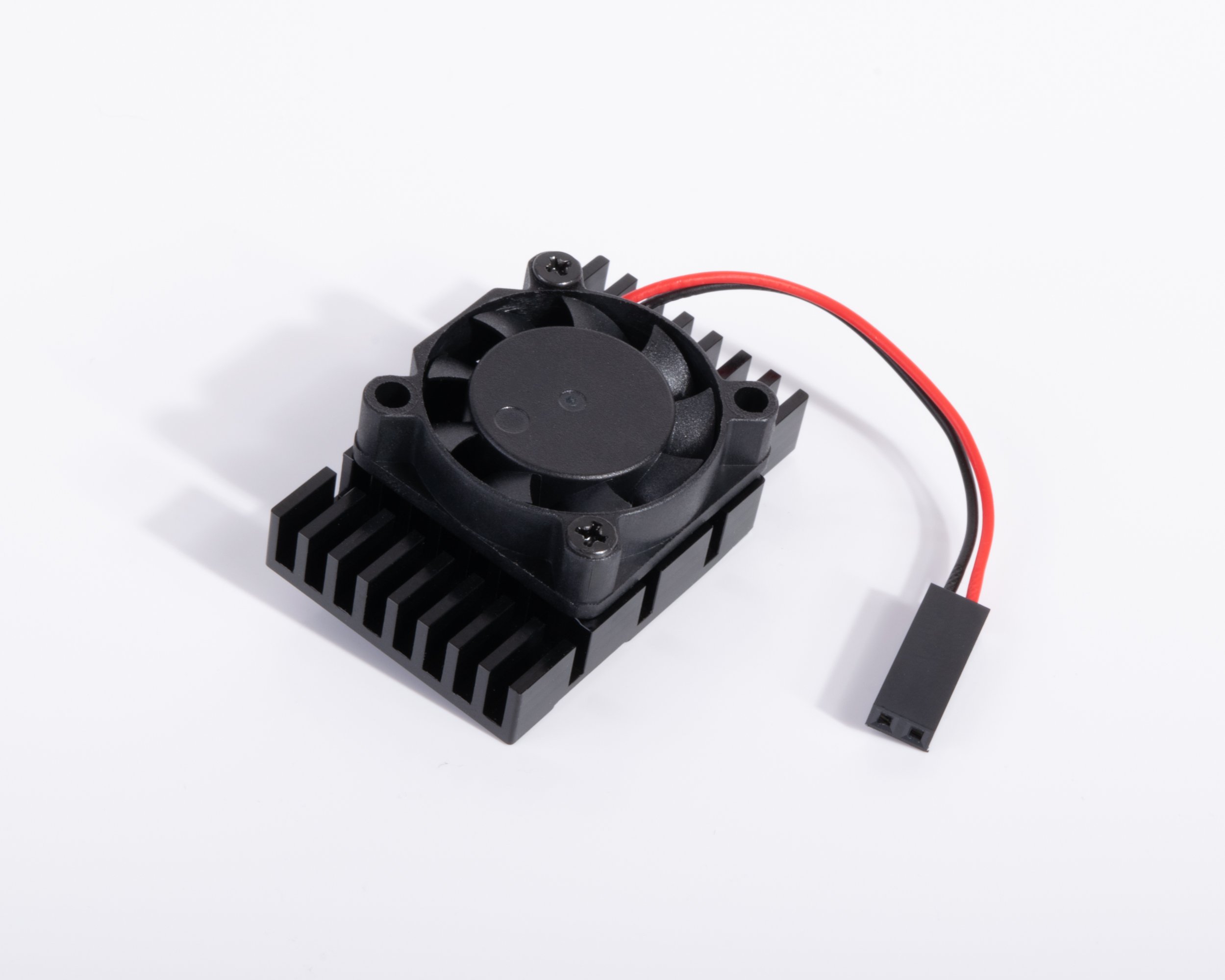

Keep your AmpRipper 4000 cool while pushing your projects to the limit with our custom anodized aluminum Ampripper 4000 heatsink and fan.
Keep your AmpRipper 4000 cool while pushing your projects to the limit with our custom anodized aluminum Ampripper 4000 heatsink and fan.
Keep your AmpRipper 4000 cool while pushing your projects to the limit with our custom anodized aluminum Ampripper 4000 heatsink and fan.
FAN SPECIFICATIONS:
Input Voltage: 5VDC
Current Draw: 0.12A
Dimensions: 25mm x 25mm x 7mm / 0.984” x 0.984” x 0.276”

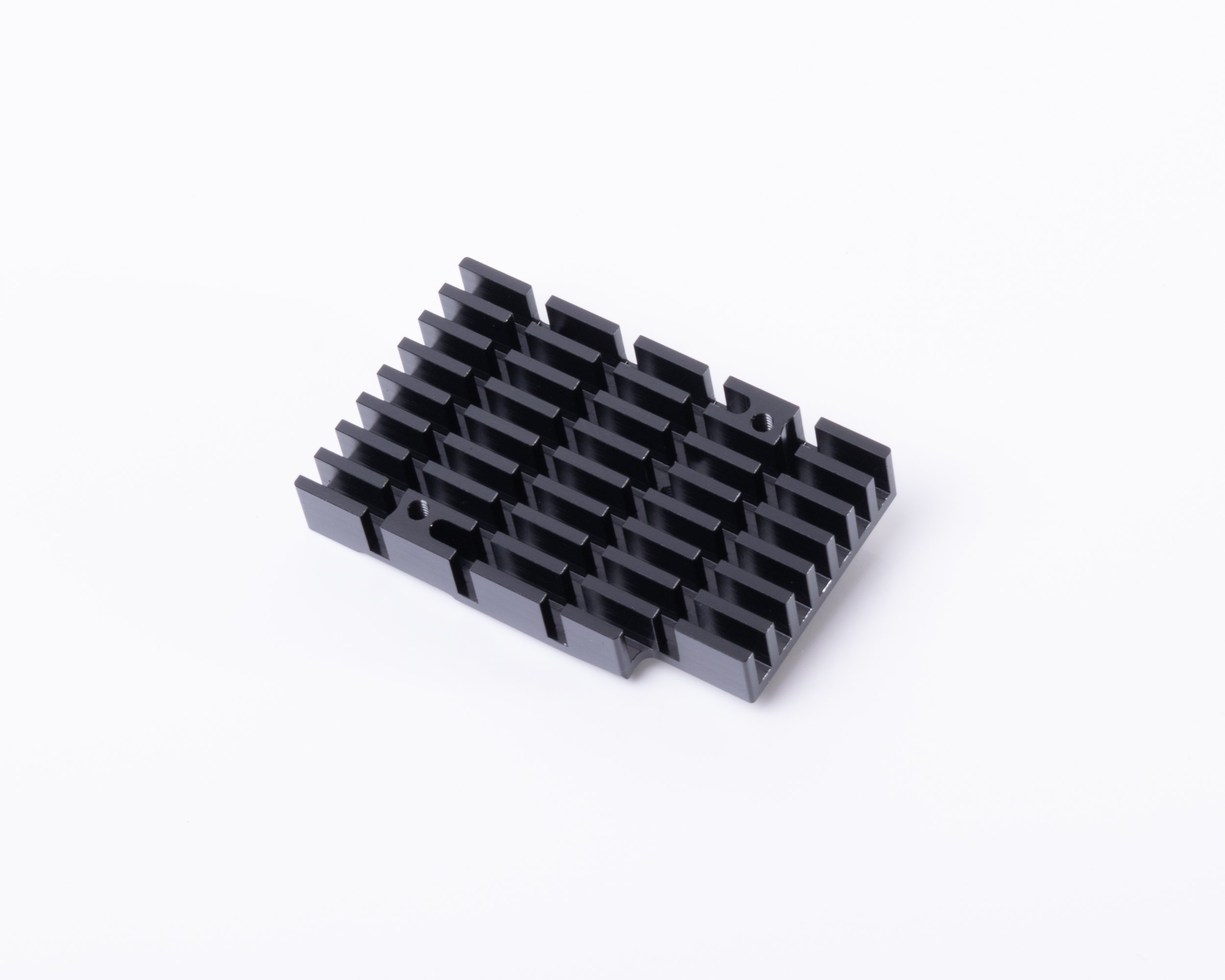

HEATSINK SPECIFICATIONS:
Material: Aluminium 6061-T6
Finish: Anodized Black
Dimensions: 41mm x 25.5mm x 9.36mm / 1.614” x 1.004” x 0.368”
APPLICATIONS:
High Current Applications
High Efficiency Applications
Temperature Sensitive Environments
Low Airflow Enclosures
ADDITIONAL RESOURCES:
AmpRipper 4000 v1.0 Digital Product Brief
(Download .PDF)AmpRipper 4000 v1.0 3D Model
(Download .STEP)

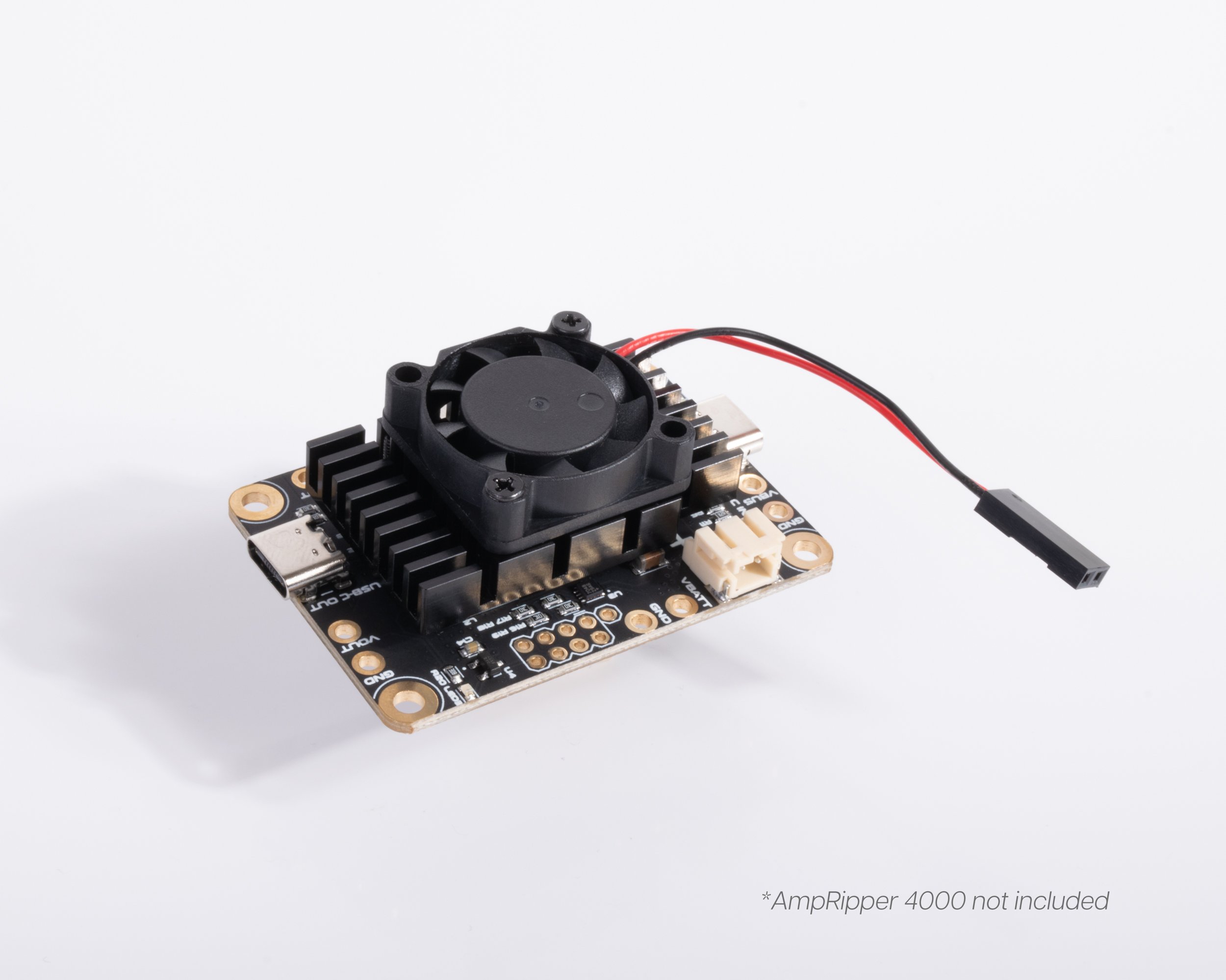

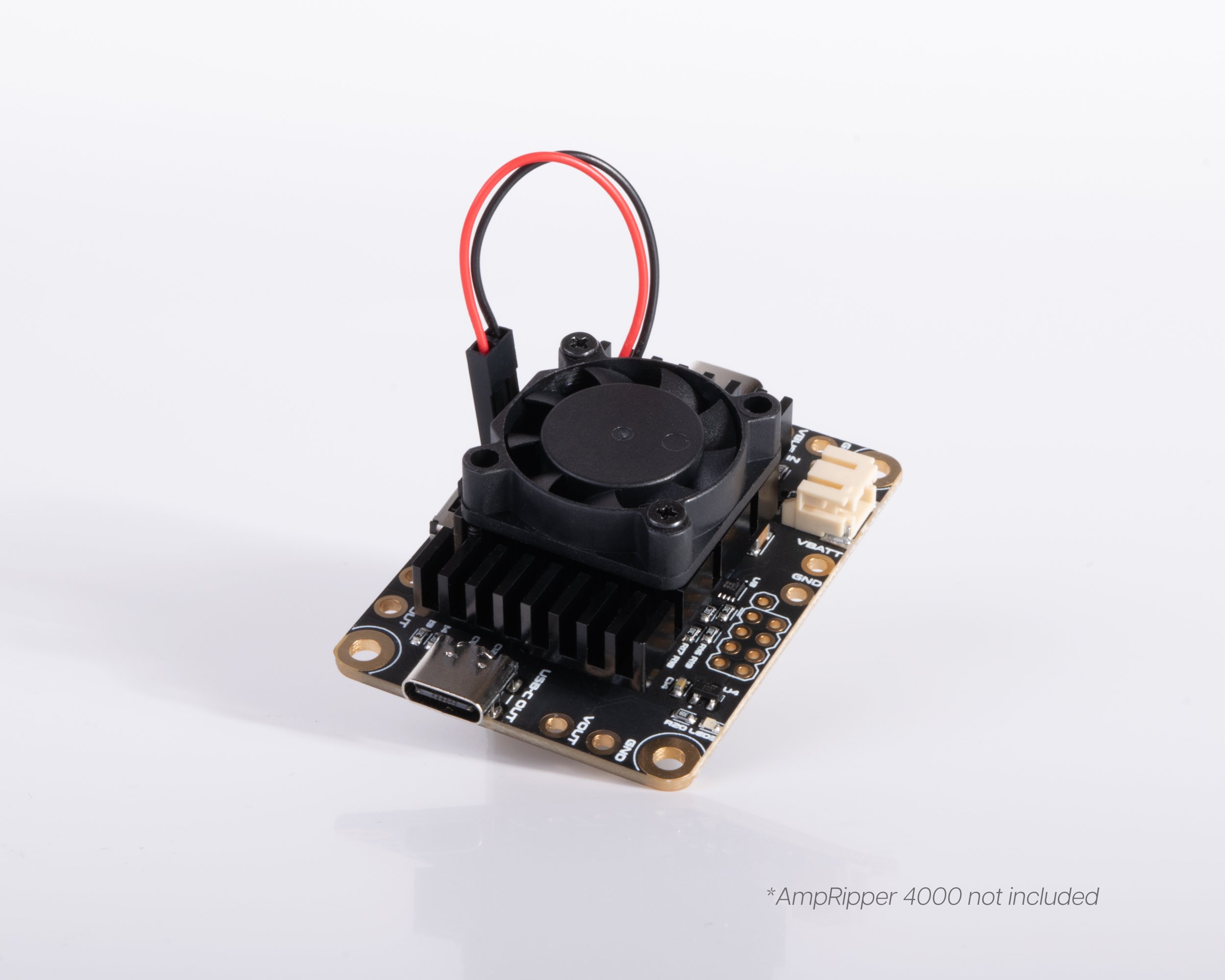

The AmpRipper 4000 heatsink and fan add-on improves thermal efficiency of the AmpRipper’s charging and boost convert ICs. This add-on is great for users looking to maximize charge/discharge rates or to keep the unit cool in enclosures with little airflow. The 5VDC fan can be powered in several configurations, either directly by the AmpRipper or via an external power source. This add-on comes with everything needed for installation. Please see the adjacent video to learn how to install the heatsink properly.
The heatsink is recommended for continuous use while either charging or discharging at rates ≥2.5A. If you are charging & discharging at the same time, the heatsink would be recommended for a combined rate of ≥3A. The AmpRipper 4000 will throttle the charge rate if it detects overheating, so the device is still functional at these rates even without the heatsink. You may experience longer charge times, and the board may become hot to the touch.
Note: This heatsink and fan add-on is only compatible with the AmpRipper 4000, and is not designed to mount to the AmpRipper 3000.

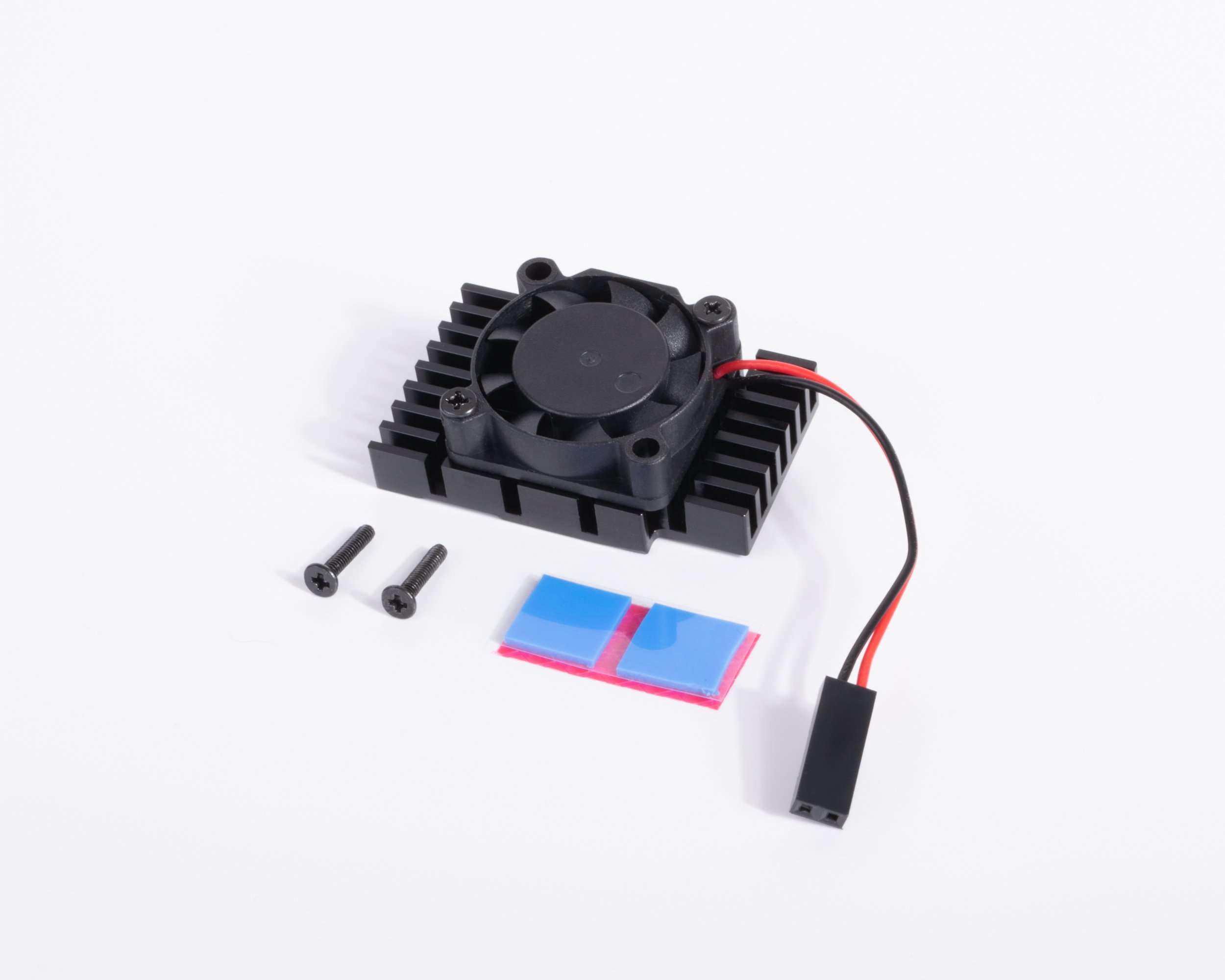

WHAT’S INCLUDED:
1x Anodized Aluminum Heatsink
1x 5VDC Fan (Pre-installed)
2x M2 Mounting Screws
2x Silicone Thermal Pads
